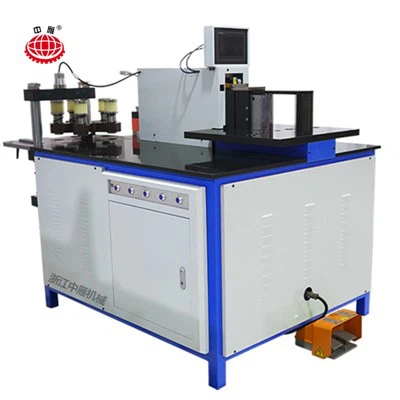

Heavy Duty Manual Busbar Processor

The Heavy Duty Manual Busbar Processor is designed for large-scale and specialized busbar processing, integrating punching, shearing, and bending functions. It provides a one-stop solution for precise punching, complex bending, and surface embossing, offering an efficient solution for forming copper and aluminum busbars in high and low-voltage switchgear, substations, and other equipment.

The machine features a maximum punching force of 650KN, a maximum shearing thickness of 12mm and width of 260mm, a maximum bending thickness of 12mm, punching specifications from Φ4.3 to Φ34mm, operating voltage of 380V, frequency of 50HZ, and power of 13.5KW. Its dimensions are 1750×1450×1300mm, and it weighs approximately 1600kg, overcoming the processing limitations of ordinary equipment. The core advantage of the Heavy Duty Manual Busbar Processor lies in its ability to process copper and aluminum busbars up to 12mm thick and 260mm wide, reducing splicing procedures and enabling one-time forming of large electrical units. The shearing unit utilizes a double-blade punching and shearing technology with no material waste, optimized for large-sized busbars, resulting in smooth cuts without the need for grinding.

A high-precision positioning system ensures consistent shearing positions. The punching unit is equipped with a unique six-arm mold frame, allowing for more molds to be readily available. The 260mm ultra-wide working platform facilitates flexible hole layout, ensuring high concentricity and minimizing mold wear. The bending station offers ample processing space, and an adjustable dual-force output system matches the optimal pressure, ensuring bending accuracy for 12×260mm wide busbars while protecting the molds and equipment structure. The Heavy Duty Manual Busbar Processor has become a core piece of equipment for large electrical manufacturing companies handling specialized busbars.
