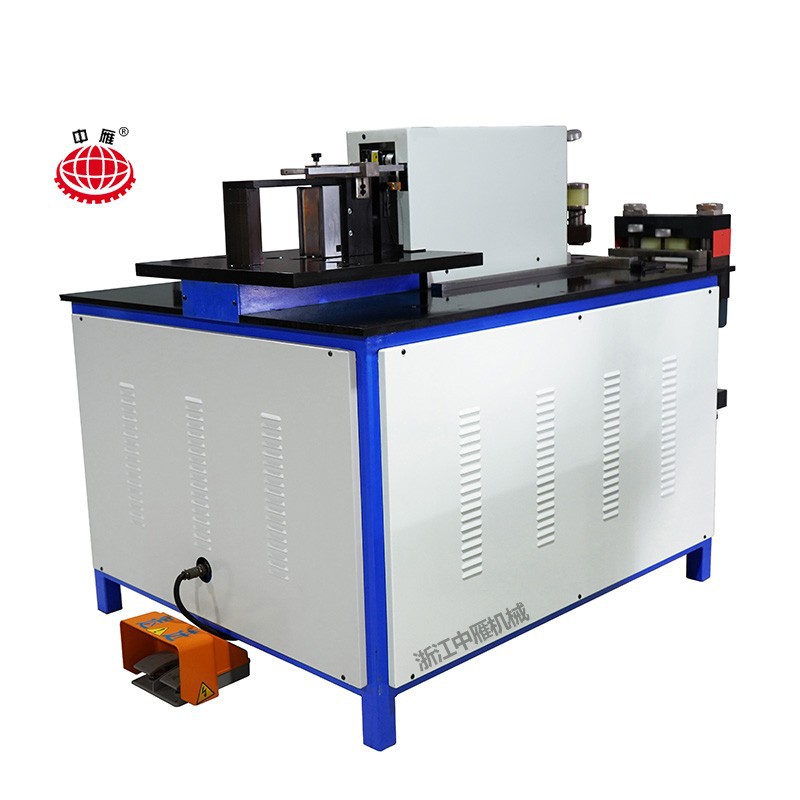

Affordable Basic Manual Busbar Tool

The Affordable Basic Manual Busbar Tool integrates three functions: shearing, punching, and bending (including vertical bending). It is a one-stop solution for processing copper and aluminum busbars in the power and electrical industry. The processed products are widely used in the connection and assembly of key equipment such as complete sets of switchgear, transformer windings, current transformers, and new energy distribution systems, effectively improving processing integration and efficiency.

This Affordable Basic Manual Busbar Tool has a maximum punching force of 350KN, a maximum shearing thickness of 12mm and width of 155mm, a maximum bending thickness of 12mm, punching specifications of Φ4.3～Φ34mm, a working voltage of 380V, a frequency of 50HZ, and a power of 11HP. Its dimensions are 1620×1130×1210mm, and it weighs approximately 1030kg, offering outstanding cost-effectiveness.

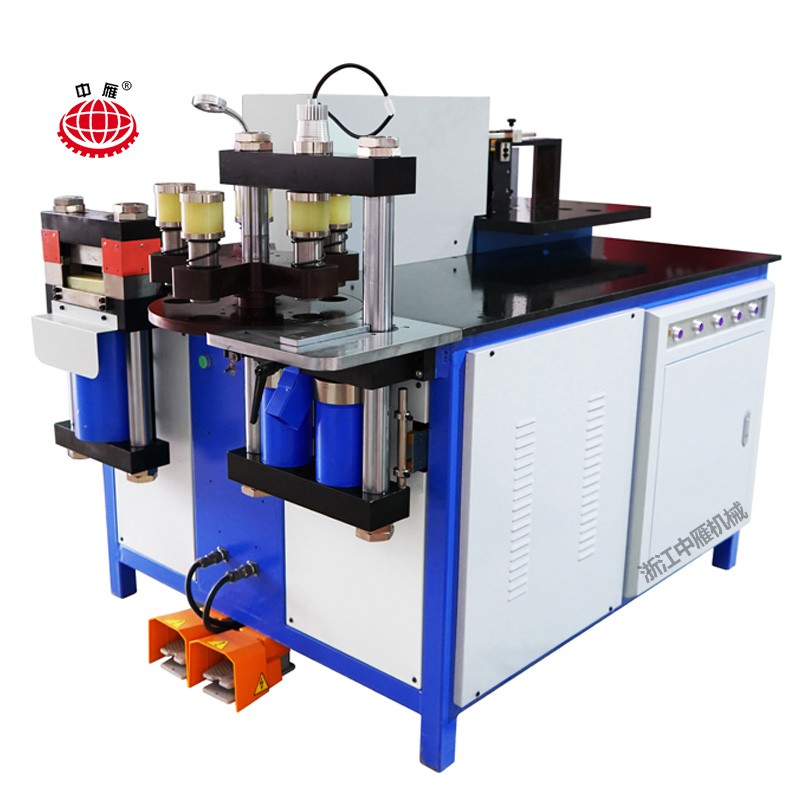

The shearing station of this Affordable Basic Manual Busbar Tool adopts an innovative vertical parallel blade structure, forming a stable shearing system with consistent accuracy over long-term use. Single-pass shearing produces a flat cross-section with zero material waste. The punching station features a high-rigidity integrated five-station turret mold frame, offering high precision and long service life. Quick mold changes allow for various processes including round holes, elongated holes, and chamfering. The bending station uses purely manual mechanical operation without a CNC system. The enclosed structure, coupled with an independent punch head, can reliably complete compact U-bends with an inner width of 35mm and large U-bends with an inner width of 90mm. It is easy to operate and provides reliable forming results, making it ideal for small and medium-sized electrical enterprises and processing workshops.
