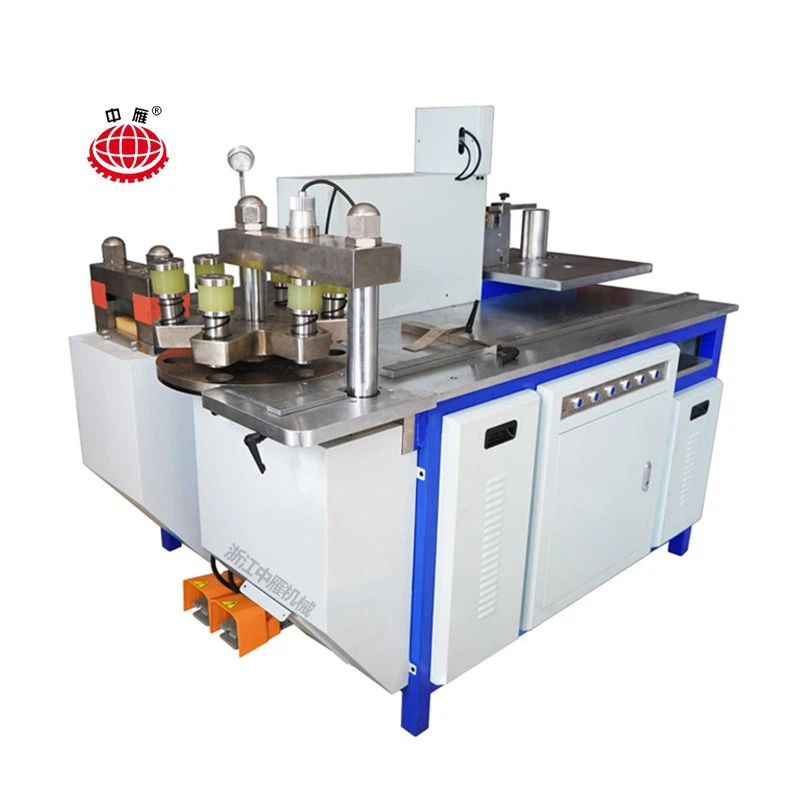

High End Custom Open CNC Machine

The High End Custom Open CNC Machine is an innovative four-process integrated equipment. Building upon traditional shearing, punching, and bending, it adds a professional "embossing" unit, creating a precision machining chain. This completely eliminates positioning errors and time loss associated with transferring workpieces between different machines, achieving one-stop, high-precision delivery of copper and aluminum busbars from raw materials to ready-to-install components. It is widely adaptable to general and high-end processing needs, such as those for high and low-voltage switchgear.

The High End Custom Open CNC Machine a maximum punching force of 750KN, a maximum shearing thickness of 17mm and width of 160mm, a maximum bending thickness of 17mm, punching specifications from Φ4.3 to Φ34mm, operating voltage of 380V, frequency of 50HZ, and power of 11KW. The High End Custom Open CNC Machine dimensions are 1900×1460×1420mm, and it weighs approximately 1700kg, demonstrating powerful performance. The fast shearing station, supported by a high-rigidity machine body, offers high shearing efficiency and smooth, burr-free cuts, maintaining stable accuracy during long-term operation.

The fast punching station improves efficiency by 50% compared to traditional methods, completing a 3-hour task in just 2 hours. The integrated six-station rotary table incorporates commonly used molds, and high concentricity reduces mold wear. The fast bending station features high-speed forward and reverse movement, increasing movement speed by 50%, supports mold interchangeability, and can handle complex processes. The manual and automatic dual modes mitigate the risk of downtime, and three bending modes are built-in. The independent embossing station combines embossing and chamfering functions, with flexible mold switching, providing diversified solutions for busbar processing and complying with GB/T19001-2016/ISO9001:2015 quality standards.
